Khoom Description

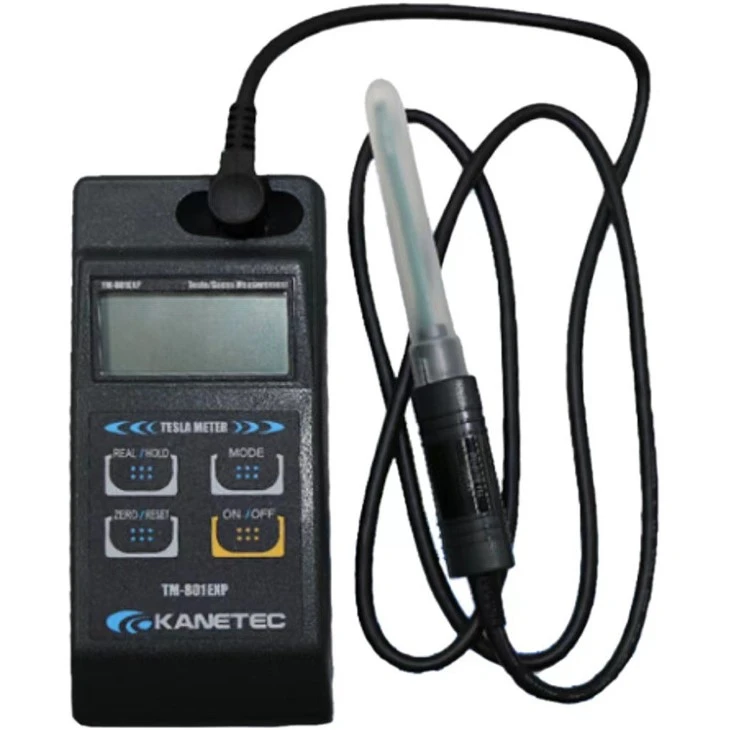

TESLA meter yog qhov ua tau zoo, siv tau hom Gaussmeter muaj cov khoom siv digital uas tau tsim los ntawm KANETEC txoj kev paub ntev thiab ua tiav hauv kev tsim cov khoom siv hlau nplaum.
Los ntawm tus neeg siv qhov kev xav, qhov ntsuas no yog tsim los siv yooj yim los ntawm leej twg los ntawm kev sib koom ua haujlwm nquag siv xwb.
Lub davhlau ya nyob twg tawm sab nraud kuj tau muab los ua kom cov digital lossis analog outputs. Tsis tas li ntawd, qhov kev sojntsuam tau ua me me rau kev ntsuas hauv qhov chaw me me.

digital gauss meter

Khoom nta

Kev daws teeb meem siab hom raug nyob rau hauv kev ntsuas ntawm DC magnetic flux density txhim kho.
Zaus npog ntau yam hauv kev ntsuas ntawm AC magnetic flux ceev nthuav dav.(40 - 500 Hz)
Sampling ceev hauv HOLD hom tau nce 1.5 npaug.
Lub sijhawm ua haujlwm tsis tu ncua los ntawm kev siv lub roj teeb txhim kho los ntawm 20% (130 teev → 160 teev).
3- txoj kev siv hluav taws xob siv tau: roj teeb, AC adapter thiab USB pub.
Cov zis digital ntawm ntsuas cov ntaub ntawv rau PC los ntawm kev siv USB.

Gauss Meter Test

Qauv	TM-801EXP				Muaj nuj nqi	Zero pib dua	Kev txiav txim polarity
						Max. ntes tus nqi tuav	Nws pib fais fab tuag Cancellable
Yam khoom mus ntes	DC magnetic flux density AC magnetic flux ceev Polarities (N,S) 40+500Hz				Tso zis	Digital output (USB) / Analog output
Chav ntsuas ntsuas	mT/G ob qho tib si ntawm ob hom hloov tau				Qhov taw qhia	Pom tus nqi	Digital
						Polarity	Cov tsiaj ntawv (N/S)
Kev ntsuas ntau	{{0}}.0mT				Ua haujlwm kub	0 - ± 40 degree (140 ℉)
Kev ntsuas hom Kev ntsuas ntau Kev daws teeb meem Kev qhia tseeb	Kev ntsuas hom	Kev ntsuas ntau	Kev daws teeb meem	Kev qhia tseeb	Zaub	LCD
	DC × 1 *	{{0}}.0mT	0.1mT	± (5% ntawm rdg. +3digit)	Hwj chim Source	Roj teeb: Loj AA (1.5V) × 4 daim Lub zog sab nraud 5-6 VDC(AC adapter/USB pub)
		200.1-3000.0mT	1 mT	± (5% ntawm rdg. +10digit)	Qhov ntev	140 (5.51) siab × 64(2.51) dav × 30(1.18) tuab
	DC x 10	0-300.00 mT	0.01mT	±(3% ntawm rdg. +5digit)	Pawg	Kwv yees li. 250g / 0.55lb (pob roj teeb & sojntsuam suav nrog)
	AC *	0-150.00 mT	0.01mT	± (5% ntawm rdg. +20digit)	Khoom siv	Kev sojntsuam (TM-801PRB), roj teeb, nqa lub hnab
		1501-300.0mT	0.1mT		Xaiv tau	Axial sojntsuam (TM-801AXL)
		301.0-1500.0mT	1 mT			Kev siv magnetic teb (TM-SMF, TM-AMF)

* Qhov ntsuas ntsuas tau raug xaiv.
Lus Cim: Qhov ntsuas no tsis yog tsim los rau kev ntsuas ntawm electromagnetic nthwv dej.

Cov khoom siv

Kev ntsuas qhov seem hlau nplaum nyob hauv machined workpieces.

Kev ntsuas qhov sib nqus flux ceev hauv cov khoom siv hlau nplaum.

Kev ntsuas ntawm magnetic flux ceev ntawm motors.

Kev ntsuas cov khoom ntawm cov khoom sib nqus.

Cov ntaub ntawv ntsuas tam sim no yog "mT" tshwj xeeb hauv kev ua raws li chav tsev teev tseg los ntawm Txoj Cai Kev Ntsuas.
Kev ntsuas dav ntawm 0 txog 3000 mT (0-30,000 G). (DC)
Ntxiv rau DC magnetic flux ceev, AC magnetic flux density tuaj yeem ntsuas.
Qhov kev daws teeb meem siab ntsuas hom ua kom muaj kev ntsuas qhov tseeb.
(Kev daws teeb meem 0.01 mT=0.1 G)
Kev siv cov ntawv tseem ceeb ua kom cov plua plav tsis zoo.
Nws pib lub hwj chim tawm muaj nuj nqi tiv thaiv tsis siv roj teeb.
Thaum qhov kev sojntsuam tau hnav lawm, nws tuaj yeem hloov nrog ib qho tshiab yam tsis muaj teeb meem calibration. (yeem)
