Dab tsi yog Magnetic Liquid Trap?
Cov kua nplaum sib nqus, tseem hu ua lub lim dej sib nqus lossis cov khoom sib nqus, yog siv hauv cov kua lossis ib nrab - cov khoom ua kua nrog cov viscosities sib txawv kom tshem tawm cov khoom ferromagnetic, khaws cov khoom hlau - dawb, thiab tiv thaiv cov khoom siv hauv qab. Cov hlau nplaum lim tau haum nrog ntau qhov sib nqus, raws li kev txiav txim los ntawm kev sib nqus teb simulation. Xyuas kom tseeb tias cov khoom ntws kov ntau li sib nqus bar li sai tau kom rho tawm txawm tias cov hlau zoo tshaj plaws. GME muaj ntau yam kua -tuav hlau nplaum xaiv los ntawm. Cia peb cov kws tshaj lij pab koj nrhiav kev daws teeb meem zoo tshaj plaws rau koj daim ntawv thov.
Xa lus nug tam sim no
-
![Angle Hom Sib Nqus Lim Magntic Liquid Traps]()
Angle Hom Sib Nqus Lim Magntic Liquid TrapsMagnetic Liquid Traps, tseem hu ua Magnetic Liquid Filters, yog tsim los tshem tawm Ferrum contamination daim ntawv ua kua los yog semi-kua cov ntaub ntawv nrog txawv viscosity, kom cov ntaub ntawv -
![Quick Interface Connector Magnetic Liquid Trap]()
Quick Interface Connector Magnetic Liquid TrapMagnetic Liquid Traps, tseem hu ua Magnetic Liquid Filters, yog tsim los tshem tawm Ferrum contamination daim ntawv ua kua los yog semi-kua cov ntaub ntawv nrog txawv viscosity, kom cov ntaub ntawv -
![Magnetic Liquid Filters Nrog Quick Interface Connector]()
Magnetic Liquid Filters Nrog Quick Interface ConnectorMagnetic Liquid Traps, tseem hu ua Magnetic Liquid Filters, yog tsim los tshem tawm Ferrum contamination daim ntawv ua kua los yog semi-kua cov ntaub ntawv nrog txawv viscosity, kom cov ntaub ntawv -
![N Style Magnetic Liquid Trap Sib Nqus Lim]()
N Style Magnetic Liquid Trap Sib Nqus LimMagnetic Liquid Traps, tseem hu ua Magnetic Liquid Filters, yog tsim los tshem tawm Ferrum contamination daim ntawv ua kua los yog semi-kua cov ntaub ntawv nrog txawv viscosity, kom cov ntaub ntawv
Hom Filter Magnets
Saib Cov Khoom Muag
Saib Cov Khoom Muag
Saib Cov Khoom Muag
Saib Cov Khoom Muag
Saib Cov Khoom Muag
Magnetic Liquid Trap Specifications

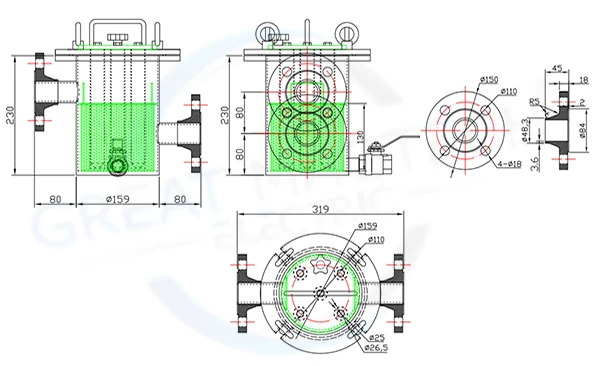

1. Txheem Magnetic Liquid Trap
JL kab yog ib tug manually ntxuav kua magnetic separator rau ib tug siab kab thiab muaj nyob rau hauv ntau qhov ntau thiab tsawg thiab kev twb kev txuas xaus. Cov haib NdFeB hlau nplaum nkag mus tob rau hauv cov khoom. Qhov no tso cai rau lawv mus ntes txawm tias cov hlau zoo tshaj plaws thiab cov hlau tsis muaj steel. Cov khoom no me me heev uas lub ntsuas hlau tsis tuaj yeem ntes lawv.
|
|
||||||||
| Yam khoom No. | Flange / Connector | A | B | C | D | G | H | Bar Quantity |
| JL-159032 | DN 32 | Ф159 | 230 | 80 | Ф39 | Ф110 | Ф25 | 5 |
| JL-159040 | DN40 | Ф159 | 230 | 80 | Ф46 | Ф110 | Ф25 | 5 |
| JL-159050 | DN 50 | Ф159 | 230 | 80 | Ф59 | Ф110 | Ф25 | 5 |
| JL-219065 | DN 65 | Ф219 | 300 | 100 | Ф78 | Ф150 | Ф25 | 7 |
| JL-219080 | DN 80 | Ф219 | 300 | 100 | Ф91 | Ф150 | Ф25 | 7 |
| JL-219100 | DN100 | Ф219 | 300 | 100 | Ф110 | Ф150 | Ф25 | 7 |
| JL-273125 | DN125 | Ф273 | 330 | 100 | Ф135 | Ф200&Ф100 | Ф25 | 10 |

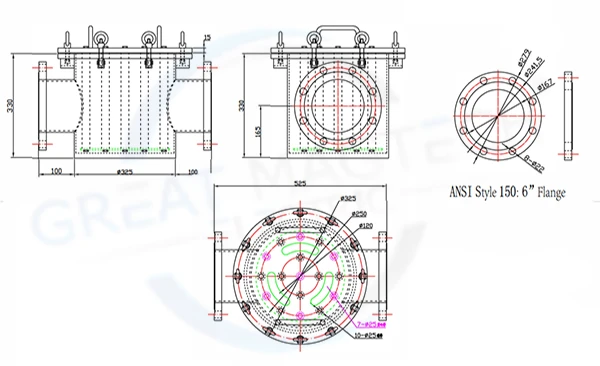

| JL-273150 | DN150 | Ф273 | 330 | 100 | Ф161 | Ф200&Ф100 | Ф25 | 10 |

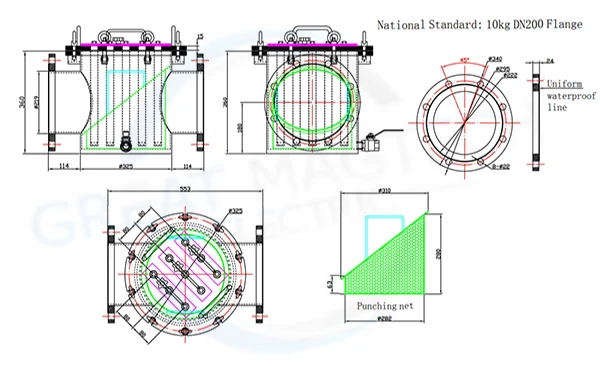

| JL-325200 | DN200 | Ф325 | 360 | 114 | Ф222 | Ф250&Ф125 | Ф25 | 13 |
| JL-377250 | DN250 | Ф377 | 420 | 116 | Ф276 | Ф300&Ф160 | Ф25 | 15 |
| JL-426300 | DN300 Nws | Ф426 | 460 | 118 | Ф328 | Ф340&Ф175 | Ф25 | 17 |
| JL-480350 | DN350 ua | Ф480 | 510 | 120 | Ф381 | Ф380&Ф200 | Ф25 | 19 |
| JL-630400 | DN400 | Ф630 | 700 | 135 | Ф426 | Ф25 | 21 | |

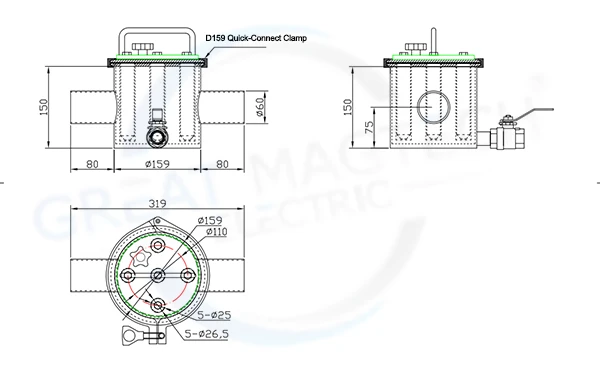

Tau txais kev kos duab
2. Ceev Interface Connector Magnetic Liquid Trap
Lub tshuab lim hlau nplaum nrog Clamp Kev Txuas yog tsim los tshem tawm cov ntaub ntawv hlau los ntawm cov kua lossis ib nrab - kua nrog cov viscosities sib txawv. Cov hlau nplaum muaj zog hauv lub vaj tsev lim cov dej ntws thiab xaiv cov hlau tsis xav tau ferrous. Chav tsev yog mounted rau cov kav dej uas twb muaj lawm ntawm flanged los yog threaded xaus. Kev nkag tau yooj yim kuj tseem tuaj yeem siv ceev - tso tawm clamp.
|
|
||||||||
| Yam khoom No. | A | B | C | D | E | L | H | Tsis muaj rods |
| GM -OS 15-25 | 1.5S | 35.7 | 4.5S | 130 | 114.3 | 330 | 180 | 5 |
| GM -OS20-25 | 2S | 47.8 | 4.5S | 130 | 114.3 | 330 | 180 | 5 |
| GM -OS 25-25 | 2.5S | 59.5 | 5.5S | 155 | 139.8 | 420 | 205 | 7 |
| GM -OS30-25 | 3S | 72.3 | 5.5S | 155 | 139.8 | 420 | 205 | 7 |
| GM -OS35-25 | 3.5S | 85.1 | 5.5S | 155 | 139.8 | 420 | 205 | 7 |
Tau txais kev kos duab
|
|
||||||||
| Yam khoom No. | A | B | C | D | E | L | H | Tsis muaj rods |
| GM -S15-25 | 1.5S | 35.7 | 4.5S | 130 | 114 | 330 | 240 | 5 |
| GM -S20-25 | 2S | 47.8 | 4.5S | 130 | 114 | 330 | 240 | 5 |
| GM -S25-25 | 2.5S | 59.5 | 5.5S | 155 | 140 | 420 | 260 | 7 |
| GM -S30-25 | 3S | 72.3 | 5.5S | 155 | 140 | 420 | 260 | 7 |
| GM -S35-25 | 3.5S | 85.1 | 5.5S | 155 | 140 | 420 | 260 | 7 |
Tau txais kev kos duab
3. Pipeline Liquid Magnetic Filter Separator
Cov raj xa hluav taws xob sib nqus nrog qhov sib txuas ceev nrawm yog qhov zoo rau kev nruj thiab yooj yim rau nruab, uas yog siv rau kev tshem tawm cov kab mob ferrous los ntawm cov kua lossis ib nrab - cov ntaub ntawv ua kua.
|
|
|||||||
| Yam khoom No. | A | ΦB | C | ΦD | E | F | L |
| GM -E10 | 2S | 47.8 | 1S | 23 | 55 | 200 | 359 |
| GM -E15 | 2S | 47.8 | 1.5S | 35.7 | 70 | 200 | 359 |
| GM -E20 | 2.5S | 59.5 | 2S | 47.8 | 82 | 250 | 416 |
Tau txais kev kos duab
|
|
|||||||
| Yam khoom No. | A | ΦB | C | ΦD | E | F | L |
| GM -E10 | 2S | 47.8 | 1S | 23 | 60 | 226 | 350 |
| GM -E10-1 | 2S | 47.8 | 1S | 23 | 55 | 226 | 340 |
| GM -E15 | 2S | 47.8 | 1.5S | 35.7 | 70 | 226 | 350 |
| GM -E20 | 2.5S | 59.5 | 2S | 47.8 | 82 | 226 | 450 |
Tau txais kev kos duab
Yuav Ua Li Cas Sib Nrauj Sib Nqus Ua Haujlwm
Thaum cov kua ntws los ntawm lub tsev los yog lub nkoj, ib qho chaw sib nqus yog tsim los ntawm cov dej no - positioned thiab teem lub zog hlau nplaum. Qhov no magnetic teb attracts cov magnetic hais nyob rau hauv cov kua paug. Feem ntau, cov impurities muaj hlau-raws li cov khoom xws li hlau lossis hlau, lossis lwm yam hlau nplaum. Thaum nyiam, cov khoom tsis huv no raug ntes los ntawm cov hlau nplaum muaj zog thiab lo rau cov ntsiab lus no. Ua li no, cov khoom sib nqus ntes cov khoom tsis huv thiab tiv thaiv lawv los ntawm kev txav mus rau hauv dej kom huv.
Kev ua haujlwm ntawm cov kua nplaum nplaum yog nyob ntawm qhov ua tau zoo ntawm cov hlau nplaum uas tsim los ntawm qhov zoo - npaj cov khoom sib nqus. Qhov no yog vim li cas nws yog ib qho tseem ceeb uas yuav tsum tau siv lub zog sib nqus ntawm qhov tsim nyog, npaj cov qauv no kom muaj txiaj ntsig zoo, thiab tswj xyuas qhov ceev ntawm cov kua ntws los ntawm lub tsev. Cov kev ntsuas no pab tsim kom muaj qhov muaj zog sib nqus los txhim kho lub zog ntawm cov hlau nplaum thiab xyuas kom meej tias tag nrho cov khoom tsis huv yog ntxuav los ntawm cov kua.
Tham nrog peb tus kws tshaj lij
Cov txiaj ntsig zoo tshaj plaws ntawm kev siv lub cuab yeej sib nqus rau cov kua dej
1. Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm kev lag luam khoom noj khoom haus sib nqus yog nws lub peev xwm tshem tawm txawm tias qhov me me ferrous hais los ntawm cov kua. Lawv tuaj yeem ntes cov khoom me me li ib micron, uas yog me dua li tib neeg lub qhov muag pom. Qhov no ua rau lawv zoo tagnrho rau kev siv hauv cov ntawv thov uas yuav tsum muaj qib siab purity, xws li hauv kev tsim tshuaj lossis khoom noj khoom haus.
2. Lwm qhov zoo dua ntawm Magnetic Liquid Traps yog lawv qhov yooj yim ntawm kev siv thiab tu. Lawv tuaj yeem ntsia tau yooj yim hauv cov kav dej lossis cov tshuab ua haujlwm, thiab lawv xav tau me ntsis kom tsis muaj kev saib xyuas ib zaug. Tsis tas li ntawd, cov khoom uas ntes tau tuaj yeem raug tshem tawm yooj yim ntawm cov hlau nplaum, uas yuav pab txo qis lub sijhawm thiab txo cov nqi tu.
3. Cov kua nplaum sib nqus sib nqus kuj ua tau zoo thiab tus nqi - zoo. Lawv tuaj yeem ua haujlwm tsis tu ncua, uas yuav pab txhawb kev tsim khoom ntau tshaj plaws thiab txo qhov kev pheej hmoo ntawm cov khoom sib kis. Tsis tas li ntawd, lawv kuj pheej yig dua piv rau lwm hom kev pom cov tshuab, uas ua rau lawv muaj kev xaiv zoo thiab kev lag luam rau ntau yam lag luam.
Sib tham txog koj cov kev xav tau
Yuav ua li cas rau nruab thiab siv Magnetic Strainer Lim
Cov kauj ruam installation
Xaiv Qhov Chaw Zoo:Muab cov lim dej tso rau hauv cov kav dej uas cov kua ntws tsis tu ncua.
Tso lub Filter Magnet:Muab cov hlau nplaum tso rau hauv txoj kev ntws ntawm cov kua lossis cov khoom uas koj tau lim. Qhov no ua kom cov hlau nplaum zoo ntes cov kab mob hlau.
Mount lub Filter:Ruaj ntseg lub lim siv cov brackets los yog clamps. Xyuas kom tseeb tias nws tau ua raws li cov kev taw qhia ntws.
Txuas cov kav dej:Txuas cov kav dej thiab qhov hluav taws xob rau lub lim. Xyuas kom lawv raug kaw nruj nreem kom tsis txhob muaj cov dej xau.
Tshawb xyuas Leaks:Qhib lub kaw lus thiab xyuas seb puas muaj qhov xau nyob ib puag ncig cov kev sib txuas.
Siv lub tshuab nqus hlau nplaum
Saib xyuas tsis tu ncua:Tshawb xyuas lub lim tsis tu ncua rau cov khoom hlau uas tau sau tseg.
Ntxuav lub Filter:Thaum cov hlau tsim- pom pom, ntxuav lub lim los ntawm kev tshem cov hlau nplaum thiab tshem tawm cov kab mob.
Hloov raws li xav tau:Yog tias lub lim tau puas lawm, hloov nws nrog ib qho tshiab los tswj kev ua haujlwm zoo.
Nug peb tus engineer
Vim li cas thiaj xaiv Great Magtech rau Koj Cov Kev Xav Tau Kev Siv Hluav Taws Xob Sib Nqus?
Great Magtech muaj cov ntxaij lim dej sib nqus uas tsim los rau kev ua haujlwm ruaj khov thiab ntev - kav ntev. Peb cov ntxaij lim dej tau tsim los ua kom tau raws li cov kev xav tau tshwj xeeb ntawm ntau qhov kev lag luam, ua kom pom kev ua haujlwm zoo hauv kev sib cais cov hlau tsis huv los ntawm cov kua.
Peb cov ntxaij lim dej sib nqus tuaj yeem hloov kho kom haum rau ntau lub raj xa dej, muab kev yooj yim rau kev teeb tsa hauv ntau lub tshuab. Txawm hais tias koj xav tau ib qho yooj yim installation lossis kev teeb tsa ntau dua, peb muab cov tswv yim daws teeb meem kom phim koj cov kev xav tau.
Great Magtech tau cog lus tias yuav xa cov khoom zoo tshaj - cov khoom zoo uas muaj txiaj ntsig zoo hauv kev ntes txawm tias cov hlau zoo tshaj plaws, kom ntseeg tau qib siab tshaj plaws ntawm kev pom. Peb cov khoom muaj kev ntseeg siab los ntawm cov lag luam hauv kev lag luam xws li khoom noj khoom haus thiab tshuaj, qhov chaw tu cev thiab kev ntseeg siab yog qhov tseem ceeb tshaj plaws.
Nrog rau ntawm - lub sijhawm xa khoom thiab kev txhawb nqa cov neeg siv khoom zoo, peb ua kom koj cov lim dej tuaj txog thaum xav tau. Ntawm Great Magtech, peb tsom mus rau muab cov kev daws teeb meem zoo tshaj plaws sib nqus los txhawb koj cov haujlwm thiab tswj cov khoom zoo.
Sib tham txog Kev Cai Lij Choj
01
Ua kom haum rau ntau yam kev qhia tshwj xeeb, nrog kev xaiv kev sib txuas ntawm flange, clamp, xov, lossis pob tw vuam ...
02
Kev sib nqus siab tshaj plaws tuaj yeem ua rau 13,000 gauss ntawm qhov chaw bar, uas tso cai rau lawv ntes cov hlau zoo tshaj plaws hauv qib μm, thiab txawm tias zoo heev stainless hlau.
03
Kev ntseeg siab los ntawm cov tuam txhab paub zoo hauv cov khoom noj thiab tshuaj, peb cov khoom ua tau raws li cov qauv kev nyiam huv tshaj plaws. Lub CIP lossis tus kheej - kev huv huv tuaj yeem muab tau kom haum rau koj cov kev xav tau tshwj xeeb.
04
Nyob rau - lub sijhawm xa khoom, lub qhov rooj xaiv tau - mus rau - qhov rooj xa khoom, thiab ntim khoom thauj huab cua dawb nrog kev kho qhov sib nqus sib nqus.
Kev lag luam uas tau txais txiaj ntsig los ntawm Magnetic Liquid Traps
Lub tshuab nqus hlau nplaum muab qhov tseem ceeb pom nyob rau hauv ntau yam kev lag luam, pab ua kom zoo thiab kev nyab xeeb ntawm cov khoom thiab cov tshuab.
Kev lag luam zaub mov thiab dej haus
Hauv kev ua zaub mov, kev lag luam khoom noj khoom haus sib nqus ua lub luag haujlwm tseem ceeb hauv kev ua kom cov khoom huv huv los ntawm kev tshem tawm cov kab mob hlau los ntawm cov kua xws li kua ntses, kua txiv hmab txiv ntoo, thiab cov khoom siv mis nyuj. Qhov no pab tswj cov qauv kev nyiam huv siab thiab tiv thaiv kev sib kis.
Xa lus nug tam sim no
Kev kho dej
Cov kua nplaum nplaum nplaum yog siv rau hauv cov chaw kho dej kom tshem tawm cov kab mob hlau los ntawm cov khoom siv dej, kom ntseeg tau tias cov dej ua tau raws li cov qauv kev nyab xeeb rau kev siv thiab kev lag luam.
Xa lus nug tam sim no
Kev lag luam kws tshuaj
Thaum tsim cov tshuaj, txawm tias cov hlau me me tuaj yeem ua rau muaj teeb meem. Cov kua nplaum sib nqus tshem tawm cov khoom no los ntawm cov khoom xyaw ua kua, kom ntseeg tau tias cov khoom siv tshuaj yog cov ntshiab thiab ua tau raws li cov qauv kev cai.
Xa lus nug tam sim no
Chemical Manufacturing
Hauv kev tsim tshuaj lom neeg, cov nroj tsuag tshuaj cia siab rau kev lag luam sib nqus lim kom tshem tawm cov hlau los ntawm cov tshuaj siv hauv lawv cov txheej txheem tsim khoom. Qhov no tiv thaiv cov tshuab los ntawm kev hnav thiab tsim kua muag thiab ua kom cov tshuaj muaj txiaj ntsig zoo thiab tsis muaj kab mob.
Xa lus nug tam sim no
Kev tu thiab tu cov lus qhia rau Magnetic Separator rau kua
Ntxuav cov kauj ruam
Tshem tawm qhov System:Ua ntej ntxuav, xyuas kom lub kaw lus kaw kom tsis txhob muaj xwm txheej.
Tshem tawm Magnetic Bar:Ua tib zoo tshem tawm cov khoom sib nqus los ntawm lub tshuab cais kom nkag mus rau cov hlau tsis huv.
Ntxuav lub Magnet:So cov khoom sib nqus nrog ib daim ntaub huv kom tshem tawm cov khoom hlau uas tau sau tseg. Rau cov khib nyiab tawv, siv cov dej sov soapy.
Tshawb xyuas lub Filter:Xyuas seb puas muaj kev puas tsuaj lossis hnav. Yog tias lub lim tau hnav, hloov nws kom pom tseeb.
Cov tswv yim tu
Txheeb xyuas Hlau Tsim-Up:Tsis tu ncua tshuaj xyuas cov khoom sib cais kom ntseeg tau tias cov khoom hlau tsis tsim los ntawm cov hlau nplaum.
Lubricate Moving Parts:Yog tias koj lub tshuab cais muaj qhov txav txav, lubricate lawv raws li qhov xav tau los tiv thaiv kev hnav thiab tsim kua muag.
Hloov raws li xav tau:Yog hais tias cov khoom puas los yog hnav ntau dhau, hloov lawv tam sim ntawd kom tswj tau qhov kev ua tau zoo.
Xa lus nug tam sim no
Yuav Ua Li Cas Txiav Txim Nto Gaussian
Txhawm rau kom ntseeg tau tias peb cov khoom tsim nyog rau koj daim ntawv thov, thov qhia rau kuv paub seb qhov loj me ntawm cov hlau tsis huv uas koj xav tau lim thiab cov hlau nplaum loj npaum li cas koj xav tau siv. Raws li daim duab hauv qab no, yog li peb tuaj yeem paub meej tias Gauss koj xav tau. (Yog tias koj tsis paub meej, thov muab cov duab ntawm cov hlau impurities uas yuav tsum tau lim thiab qhia peb qhov tsawg kawg nkaus thiab qhov siab tshaj plaws kom peb tuaj yeem txiav txim siab qhov loj ntawm Gaussian.)
Tau txais Cov Lus Qhia Txog Kev Ua Haujlwm
FAQs
Q: Puas tuaj yeem sib nqus sib nqus rau cov kua ua raws li kuv qhov kev xav tau tshwj xeeb?
A: Yog, cov kua nplaum sib nqus tuaj yeem hloov kho kom haum rau ntau qhov ntau thiab tsawg, cov nqi ntws, thiab cov khoom siv. Koj tuaj yeem xaiv qhov tsim nyog lub zog sib nqus thiab cov cuab yeej tsim kom haum rau koj daim ntawv thov tshwj xeeb.
Q: Puas yog lim hlau nplaum yooj yim los tswj?
A: Yog, cov kua nplaum sib nqus yog tsim los rau kev saib xyuas yooj yim. Kev tu thiab tshuaj xyuas cov khoom sib nqus feem ntau yog txhua yam uas yuav tsum tau ua kom lub cuab yeej ua haujlwm zoo.
Q: Puas tuaj yeem siv cov kua nplaum sib nqus rau cov kua kub thiab txias?
A: Yog, lub tshuab nqus hlau nplaum tuaj yeem ua cov kua dej kub thiab txias. Txawm li cas los xij, rau siab - daim ntawv thov kub, xyuas kom meej tias cov ntaub ntawv siv tau raug ntsuas rau qhov ntsuas kub tshwj xeeb.
Q: Kuv tuaj yeem txheeb xyuas qhov ua tau zoo ntawm cov kua nplaum sib nqus li cas?
A: Kev ua tau zoo tuaj yeem raug saib xyuas los ntawm kev tshuaj xyuas cov kab hlau nplaum tsis tu ncua rau cov khib nyiab hlau sib xyaw. Yog hais tias cov tuav tuav tsis tu ncua ntes cov kab mob, qhov system ua haujlwm zoo.
Q: Puas yog nws tsim nyog rau nruab ib lub tshuab hluav taws xob sib nqus ntawm txhua lub raj xa dej?
A: Txawm hais tias tsis yog ib txwm tsim nyog rau txhua lub raj xa dej, txhim kho cov cuab yeej sib nqus ntawm cov ntsiab lus tseem ceeb uas muaj kev pheej hmoo kis kab mob siab tshaj plaws - xws li thaum pib ua lossis ua ntej ntim khoom - raug pom zoo kom tiv thaiv cov khoom hlau los ntawm cov khoom kawg.
Q: Dab tsi Gauss qib pom zoo rau kev ua kua?
A: Qhov xav tau Gauss qib nyob ntawm qhov loj me thiab qhov xav tau purity. Rau kev lim dej dav dav, 8,000-10,000 Gauss yuav txaus. Rau cov khoom hlau zoo lossis siab - cov kab ntau lawm, 10,000–12,000 Gauss feem ntau pom zoo.
Q: Puas yog cov kua nplaum sib nqus haum rau kev ua zaub mov?
A: Yog. Khoom noj khoom haus- qib qauv yog tsim los ntawm 304 lossis 316L stainless hlau. Nto polishing thiab huv welding pab ua raws li cov qauv kev nyiam huv hauv cov zaub mov thiab tshuaj lag luam.
Q: Hom kev sib txuas dab tsi muaj?
A: Cov kev sib txuas muaj xws li Tri-clamp, flange, thiab threaded hom. Kev sib txuas cov raj xa dej tuaj yeem tsim tau raws li koj qhov kev xav tau.
Tau txais cov khoom zoo sib nqus cov kua nplaum los ntawm cov kws tshaj lij magnetic kua ntxiab tuam ntxhab thiab cov muag khoom ntawm no. Peb lub Hoobkas muab cov khoom zoo tshaj plaws nrog tus nqi qis tshaj.
