Qhuav Electromagnetic SeparatorElectromagnetic Separator rau qhuav hmoov, DRY Electromagnetic Separators, Sib Nqus Sib Nqus Cov Khoom Siv Chaw tsim khoom.Siv rau demagnetization thiab tshuaj xyuas cov khoom siv hluav taws xob
Dab tsi yog Electromagnetic Separator?
Lub Electromagnetic Separator yog lub siab - sib nqus sib nqus sib cais system tsim los rau cov txheej txheem kab uas xav tau cov hlau ruaj khov, rov ua dua cov hlau tshem tawm los ntawm cov hmoov zoo los yog slurries. Nws feem ntau yog siv thaum lub hom phiaj kev huv huv yog nruj-xws li lithium- cov ntaub ntawv roj teeb ion, hmoov metallurgy, additive manufacturing feedstocks, ceramics, thiab high-spec mineral processing.
Nyob ntawm koj cov ntaub ntawv thiab qib kis kab mob, GME teeb tsa lub kaw lus los ntawm cov khoom noj (qhuav / ntub dej), lub hom phiaj impurity qhov loj me, thiab dhau los, thiab tom qab ntawd sib tw coil fais fab, txoj kev txias, thiab kev sib cais nruab nrab raws li. Hauv kev tsim khoom, cov khoom sib cais yog siv los tshem tawm ferrous thiab tsis muaj zog sib nqus cov kab mob ua ntej lawv cuam tshuam cov khoom siv qis, tawm los, lossis zoo sib xws.
Rau kev sib koom ua ke yooj yim dua, tus qauv tsim tau hais txog kev sib haum xeeb, kev tswj xyuas kom meej, thiab kev saib xyuas - tus phooj ywg nkag mus rau cov khoom tseem ceeb, yog li kev ua tau zoo nyob ib puag ncig ntev, tsis yog hauv kev sim luv luv xwb.
Electromagnetic Separator Hom
Qhuav Electromagnetic Separator
1. Lub tshuab electromagnetic qhuav qhuav no tuaj yeem tshem tawm cov micron- qib kab hlau nplaum (xws li cov khoom sib nqus tsis muaj zog).
2. Qhov chaw ruaj khov siab sib nqus induction ua haujlwm tau zoo heev.
3. Customized screen vaps tuaj yeem siv los daws cov khoom ntawm cov khoom sib txawv.
4. Ntxiv cov khoom siv vibrations sib txawv ua rau cov khoom siv thauj khoom smoother thiab tuaj yeem tshem tawm cov hlau tsis huv.
5. Kev ua tiav sab hauv ntawm lub tog raj kheej lim kom muaj cov qauv ruaj khov, thiab tsis tas yuav hloov lossis kho.
Electromagnetic Separator ntub dej
1. Lub tshuab electromagnetic separator tuaj yeem tshem tawm cov micron - qib kab hlau nplaum (xws li cov khoom sib nqus tsis muaj zog).
2. Qhov chaw ruaj khov siab sib nqus induction ua haujlwm tau zoo heev.
3. Ntau yam ntawm cov ntxaij vab tshaus tuaj yeem siv los cuam tshuam nrog cov khoom ntawm cov khoom sib txawv.
4. Lub tshuab ntxuav tsis siv neeg tuaj yeem ntsia tau kom ua tiav kev ua haujlwm tsis siv neeg.
5. Lub siab - lub zog cua txias tuaj yeem ntsia tau los txhim kho kev ua haujlwm sib nqus induction.
Technical Parameters ntawm Electromagnetic Separator
Qhuav Electromagnetic Separator
|
|
||||||||||
| Qauv | Ua hauj lwm siab | Nto Magnetism (Gs) |
H (mm) |
Txoj kab uas hla (mm) |
A (mm) |
B (mm) |
C (mm) |
Number of Magnetic Rods | Kev siv hluav taws xob (KW) |
Kev Ua Tau Zoo (m³/h) |
| YCJL-273-FA-7 | Tsawg dua lossis sib npaug li 1.0MPa | 12000 | 2292 | 89 | 770 | 950 | 273 | 7 | 0.55 | 20m³/h |
| YCJL-325-FA-7 | 15000 | 2292 | 125 | 770 | 950 | 325 | 7 | 0.55 | 40m³/h | |
Electromagnetic Separator ntub dej
|
|
|||||||
| Qauv | Background Magnetic Field (Gs) | Ua hauj lwm Magnetic Field (Gs) |
Sab hauv (mm) |
Qhov hnyav (T) |
Hwj chim (KW) |
Kev Ua Tau Zoo (kg / h) |
Loj (mm) |
| DCGF250-3500 | 3500 | 0-14000 | 250 | 2.6 | 12 | 300-800 | 1440×1522×1845 |
| DCGF250-6000 | 6000 | 0-24000 | 250 | 3.2 | 19 | 300-800 | 1440×1522×1845 |
| DCGF300-3500 | 3500 | 0-14000 | 300 | 2.9 | 13 | 600-1000 | 1540×1622×1845 |
| DCGF300-6000 | 6000 | 0-24000 | 300 | 3.4 | 23 | 600-1000 | 1540×1622×1845 |
| DCGF350-3500 | 3500 | 0-14000 | 350 | 3.2 | 16 | 800-1300 | 1640×1722×1845 |
| DCGF350-6000 | 6000 | 0-24000 | 350 | 3.6 | 25 | 800-1300 | 1640×1722×1845 |
Yog xav paub ntxiv los yog thov kev kos duab yam tsis muaj watermarks, thov nias lub pob hauv qab no hu rau peb pab neeg muag khoom.
Cov txiaj ntsig ntawm kev siv Electromagnetic Separator Equipment
1. Ua kom zoo rau cov khoom ntub lossis qhuav: Cov khoom siv hluav taws xob sib cais tuaj yeem ua cov ntaub ntawv ntub thiab qhuav. Qhov no ua kom muaj kev sib cais zoo txawm tias nyob rau hauv cov xwm txheej uas cov dej noo yuav muaj kev txhawj xeeb.
2. Kev sib cais ntawm cov hlau zoo: Cov khoom sib cais ua rau cov hlau sib cais ntawm cov nplej ntau hauv qab 0.01mm. Qhov no yog ua tiav los ntawm kev coj cov sib nqus flux mus rau chav tsev qhov chaw, txhim kho cov flux ceev dua yam tsis muaj qhov sib nqus to. Qhov no ua kom ntseeg tau tias txawm tias cov hlau me me sib cais tau zoo.
3. Kev vibration rau kev txhim kho Flow Rate: Nrog rau kev co hauv cov ntxaij lim dej kom ntseeg tau tias cov hlau tshem tawm tau zoo, uas txhim kho lub vijtsam ntws. Qhov no txhais tau hais tias cov khoom ua tiav ntws zoo yam tsis muaj kev cuam tshuam.
4. Tsis muaj Magnetic Leakage: Kev tsim ntawm GME electromagnetic separator kom ntseeg tau tias tsis muaj qhov sib nqus nqus. Qhov no txhais tau hais tias lub zog sib nqus tau siv tag nrho rau txoj kev sib cais, ua kom muaj kev ua haujlwm siab tshaj plaws.
5. Ntau yam ntawm cov khoom: Peb muaj ntau yam electromagnetic separators. Qhov no ua kom cov neeg siv khoom muaj ntau yam kev xaiv los xaiv raws li lawv cov kev xav tau tshwj xeeb.
Qhuav vs ntub Electromagnetic Separator
| Kev txiav txim Factor | Hom Qhuav (Electromagnetic Separator) | Hom ntub dej (Electromagnetic Separator) |
|---|---|---|
| Pub daim ntawv | Qhuav hmoov los yog granules | Slurry/liquid suspension |
| Moisture theem | Tsawg noo noo, tsis muaj - ntws | Nruab nrab mus rau siab noo noo, pumpable |
| Hom txheej txheem txoj hauj lwm | Qhuav ua kab (inline hlau tshem tawm) | Kev sib tsoo ntub / slurry kab (inline hlau tshem tawm) |
| Zoo tshaj - haum kev lag luam | Hmoov metallurgy, additive manufacturing hmoov, qhuav minerals, tshuaj hmoov | Roj teeb slurries, ceramic slurries, ntub dej ntxhia, coatings |
| Particle loj tsom | Cov hmoov zoo nrog kev pub mis ruaj khov | Fine hais nqa nyob rau hauv slurry rau ruaj khov capture |
| Kev ruaj ntseg ntawm cov khoom | Nyob ntawm feeder thiab vibration chaw | Feem ntau ruaj khov nrog tswj twj tso kua mis ntws |
| Sib cais nruab nrab / matrix | Screen lossis matrix + vibration paug | Matrix hauv slurry chamber + flushing voj voog |
| Txoj kev tso tawm | Vibration paug, phau ntawv / pab tshem tawm | Valve tawm / ntws tawm (yooj yim rau automate) |
| Kev tu kom huv | Kev ntxuav tes; ntau zaus yog cov hmoov nplaum | Teem caij dej ntws; yooj yim tu niaj hnub |
| Lub ntsiab zoo | Tsis xav tau dej; yooj yim rau cov kab qhuav | Zoo dua rau slurry; ruaj khov thiab yooj yim tso tawm / ntxuav |
| Cov kev txwv loj | Yuav tsum muaj kev noj zaub mov zoo ib yam thiab tswj plua plav | Yuav tsum tau slurry tuav thiab dej / cua txias |

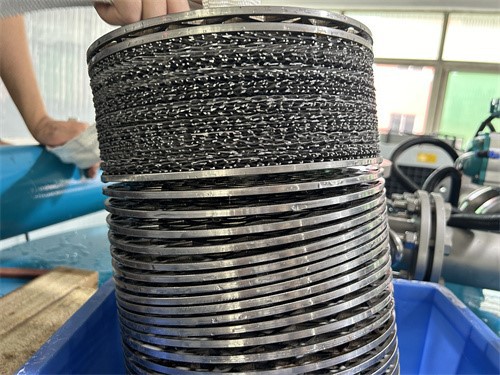

Magnetically Conductive Medium
Cov khoom siv hluav taws xob sib nqus siv hauv lub tshuab hluav taws xob sib nqus feem ntau yog tsim los ntawm 430 ferritic stainless hlau, xaiv kom muaj zog sib nqus conductivity thiab ua haujlwm zoo corrosion.
Qhov nruab nrab zoo yog txiav txim los ntawm ob qho kev coj ua haujlwm.
Thaum lub coil yog energized, nws yuav tsum mloog zoo rau cov magnetic teb zoo mus ntes nplua ferrous thiab weakly sib nqus cov kab mob.
Thaum lub hwj chim raug kaw, nws yuav tsum demagnetize sai sai yog li cov khoom khib nyiab tso tawm kom huv, tiv thaiv kev thauj mus los thiab ua kom muaj kev cuam tshuam.
Thaum vuam thiab fabrication, lub microstructure ntawm 430 stainless hlau tuaj yeem hloov hauv zos, uas cuam tshuam rau ob qho tib si demagnetization ceev thiab kev ua haujlwm corrosion. Vim li no, qhov nruab nrab xav tau kev tswj xyuas thiab kev kho cua sov kom rov qab tau cov khoom ruaj khov thiab kev coj tus cwj pwm sib cais.
Vim tias cov khoom noj sib txawv ntawm qhov loj me, noo noo, thiab qib sib kis, peb siv cov txheej txheem nruab nrab thiab cov qauv sib txawv kom haum rau daim ntawv thov thiab ua kom muaj zog dua, zoo dua cov hlau tshem tawm.
Electromagnetic Separator OEM Customization Options
Hom txheej txheem:Cov hmoov qhuav los yog ntub slurry configuration
MagMagnetic System:Coilting / field siv sib phim rau impurity theem thiab throughput
Magnet Magnetic Medium (matrix):Cov qauv, qhov loj me, thiab qhov sib npaug sib luag vs kev tso tawm kom huv
Ua Haujlwm Gap & Chamber Design:Tunedicle loj faib thiab ntws tus cwj pwm
Txias pob:Cua, dej, lossis roj txias raws li lub luag haujlwm lub voj voog thiab qhov kub thiab txias
Tshem Tawm & Ntxuav:Los ntawm txhais tes tso tawm, pab tshem tawm, lossis automated flushing cycles
Tswj:PLC logic, interlocks, sensors (kub / ntws), thiab xaiv VFD teeb tsa
Interfaces:Inlet / qhov hluav taws xob loj, mounting cov ntsiab lus, thiab layout kom haum koj kab
Cov khoom siv tiv thaiv: corrosion-cov khoom tiv taus lossis hnav-cov ntaub ntawv tiv thaiv rau cov khoom siv abrasive
Txhawm rau hais kom raug, thov qhia koj lub npe khoom, pub daim ntawv (qhuav / slurry), particle loj (D50 / D90), ya raws lossis cov ntsiab lus ntawm cov khoom, lub hom phiaj Fe (ppm), kev xa tawm, thiab cov khoom siv hluav taws xob.
Daim ntawv thov ntawm Electromagnetic Separator
Cov khoom siv roj teeb lithium-ion:Cathode / anode hmoov thiab slurry kab qhov twg hlau tswj teeb meem
Hmoov Metallurgy & Additive Manufacturing:Cov hmoov hlau zoo uas xav tau kev sib cais kom huv, ruaj khov
Ceramics & iav:Ceramic hmoov, kaolin, feldspar, thiab glaze cov ntaub ntawv
Mining & Mineral ua:Quartz, silica xuab zeb, feldspar, thiab lwm yam khoom ntxhia zoo
Tshuaj & Pigments:Titanium dioxide, carbon dub, thiab lwm yam siab -purity hmoov
Recycling kwj:Tshem tawm tramp hlau los ntawm cov khoom ua tiav los tiv thaiv cov khoom siv hauv qab
Vim li cas Great Magtech's Electromagnetic Separator?
Koj tsis yuav ib lub tshuab electromagnetic separator rau "magnetic zog" ib leeg. Koj yuav nws rau kev tshem tawm cov hlau ruaj khov, kev tso tawm pov tseg, thiab kev sib koom ua ke yooj yim rau hauv cov kab ntau lawm.
Great Magtech tsim nws cov electromagnetic separators nyob ib ncig ntawm cov kev xav tau. Peb muab ob qho tib si qhuav thiab ntub kev teeb tsa, nrog rau kev tshuaj ntsuam thiab cov kev xaiv nruab nrab uas tuaj yeem sib phim rau cov hmoov sib txawv lossis slurries. Rau cov tshuab ziab khaub ncaws, qhov sib txawv - zaus vibration pab kom cov paug tawm du thaum cov ntaub ntawv tsis ntws mus tas li. Rau cov tshuab ntub dej, kev tu tsis siv neeg thiab siab - lub zog txias xaiv txhawb kev khiav ntev dua nrog kev cuam tshuam phau ntawv tsawg dua.
Peb kuj tsom rau qhov sib xws. Cov khoom tseem ceeb yog tsim rau kev ua tau zoo dua ntawm cov khoom siv, thiab cov txheej txheem yog tsim rau kev saib xyuas, yog li uptime yooj yim dua los tiv thaiv tom qab kev teeb tsa.
Yog tias koj qhia koj cov khoom siv, qhov loj me me, kev sib kis, thiab qib kev huv ntawm lub hom phiaj, peb tuaj yeem pom zoo rau kev teeb tsa uas haum rau koj cov kab es tsis txhob yuam ib qho - qhov loj me - haum - txhua tus qauv.
FAQs
Q: Yuav ua li cas tshem tawm thaum ua haujlwm?
A: Cov tshuab ziab khaub ncaws feem ntau siv kev co tawm, thiab cov kev xaiv xws li hloov pauv tau - zaus vibration tuaj yeem txhim kho qhov sib xws. Cov tshuab ntub dej feem ntau tso tawm los ntawm kev tso dej tawm / valve thiab tuaj yeem ntxiv kev ntxuav tsis siv neeg.
Q: Dab tsi yog qhov yuam kev ntawm kev teeb tsa kom zam?
A: Siv daim ntawv pub mis tsis raug (hmoov vs slurry), kev pub mis tsis sib xws, tswj cov plua plav tsis zoo ntawm cov kab qhuav, thiab hla kev tshuaj xyuas / tu txhua hnub yog qhov ua rau tsis ruaj khov.
Q: Peb yuav ua li cas xyuas qhov kev ua tau zoo tom qab kev teeb tsa?
A: Pom zoo rau cov ntsiab lus lees paub ua ntej (los ntawm kev tso tawm, tso tawm ruaj khov, thiab qib kev huv ntawm lub hom phiaj). Yog tias koj muab cov qauv khoom siv thiab koj lub hom phiaj spec, qhov teeb tsa tuaj yeem hloov kho kom tau raws li koj qhov chaw nyob.
Q: Dab tsi ua rau cov hlau tshem tawm tsis ruaj khov thaum lub sijhawm?
A: Feem ntau yog vim li cas yog kev pub mis tsis sib haum, hmoov caking / bridging, tshuaj ntsuam / nruab nrab paug, thiab cua txias tsis txaus thaum lub sijhawm ua haujlwm ntev.
Q: Puas yog lub zog sib nqus siab dua ib txwm txhais tau tias kev sib cais zoo dua?
A: Tsis tas li. Kev ua tau zoo hauv kev ua haujlwm pab, tab sis cov txiaj ntsig tiag tiag kuj yog nyob ntawm qhov nruab nrab tsim, lub sijhawm nyob, kev noj zaub mov ruaj khov, thiab qhov kev sib cais kom huv npaum li cas tuaj yeem tshem tawm cov kab mob.
