Xaiv txoj cai sib nqus chuck tsis yog ib txwm ncaj nraim. Tej zaum koj yuav xav tias nws tsuas yog tuav lub zog xwb, tab sis muaj ntau ntxiv rau nws.
Hom tshuab koj siv, cov khoom siv ntawm koj lub workpiece, thiab txawm tias nws cov tuab tuaj yeem hloov pauv qhov sib nqus chuck ua haujlwm li cas. Kev teeb tsa uas ua haujlwm zoo rau kev sib tsoo yuav tsis ua haujlwm zoo ib yam rau milling lossis EDM. Yog tias koj xaiv qhov tsis ncaj ncees lawm, koj yuav ntsib teeb meem xws li tuav tsis muaj zog, tsis raug, lossis tsis ruaj khov machining.
Hauv phau ntawv qhia no, koj yuav kawm yuav ua li cas xaiv cov hlau nplaum sib nqus raws li kev ua haujlwm tiag tiag, yog li koj qhov kev teeb tsa nyob ruaj khov thiab zoo ib yam. Thov nyeem ntxiv hauv qab no.
Dab tsi yog Magnetic Chuck?
Sib nqus chuckyog ib qho khoom siv tshwj xeeb uas siv rau hauv machining. Feem ntau koj yuav pom nws hauv kev sib tsoo, milling, thiab txawm tias qee qhov kev teeb tsa tig. Nws siv lub zog sib nqus los tuav ferrous hlau workpieces ruaj ntseg hauv qhov chaw. Es tsis txhob siv clamps lossis vises, lub chuck tuav qhov sib npaug ntawm nws qhov chaw.
Qhov no txhais tau tias tsawg dua lub sijhawm teeb tsa thiab tsawg dua cov ntsiab lus siab. Yog tias tsis muaj kev siv tshuab clamping, koj tuaj yeem tshuab ntau sab ntawm ib feem, feem ntau mus txog tsib lub ntsej muag, tsis muaj qhov hloov pauv. Qhov no yog tshwj xeeb tshaj yog pab tau thaum ua hauj lwm nrog nyias los yog ilv qhov chaw uas yuav khoov nyob rau hauv lub uneven quab yuam.
Hom Magnetic Chucks
Cov tshuab sib txawv thiab kev ua haujlwm xav tau ntau hom sib nqus chucks. Yog tias koj nkag siab txog cov kev xaiv tseem ceeb, nws yooj yim dua los xaiv qhov tsim nyog rau koj qhov teeb tsa.
Permanent Sib Nqus Chuck
Ib tug mus tas li magnetic chucktsis xav tau hluav taws xob. Koj tig lub zog sib nqus ntawm thiab tawm nrog tus kov lossis qib. Nws yog qhov yooj yim siv, ruaj khov, thiab feem ntau xaiv rau kev sib tsoo ua haujlwm lossis kev siv hauv khw. Yog tias koj xav tau kev saib xyuas qis thiab kev ua haujlwm ncaj nraim, hom no yog ib qho kev xaiv.

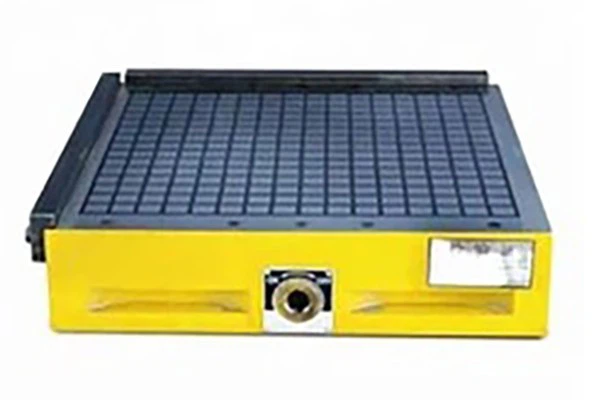

Electromagnetic Chuck
Ib tug electromagnetic chuckua haujlwm nrog hluav taws xob. Thaum fais fab tuag, nws tsim ib qho chaw sib nqus los tuav lub workpiece. Hom no feem ntau yog siv thaum xav tau kev tuav ruaj khov lossis kho tau.
Nws tuaj yeem ua haujlwm zoo hauv kev ua haujlwm hnyav dua, tab sis cov khoom siv hluav taws xob tseem ceeb.
Electro-Nruam Magnetic Chuck
Ib qho electro-magnetic chuck mus tas licombines nta ntawm ob hom. Nws siv hluav taws xob tsuas yog thaum hloov mus los yog tawm, tab sis tsis yog thaum tuav qhov. Qhov no muab koj lub zog tuav nrog kev siv lub zog qis dua thiab ntxiv kev nyab xeeb.
Yuav ua li cas Sib Nqus Chucks Ua Haujlwm hauv Kev Siv Tiag Machining
Cov hlau nplaum chuck ua haujlwm los ntawm kev tsim cov magnetic teb uas rub lub workpiece los ntawm chuck nto. Thaum ib feem nyob rau hauv tag nrho kev sib cuag, nws nyob twj ywm nyob rau hauv qhov chaw thaum lub sij hawm machining.
Lub tswv yim yooj yim yog yooj yim.
Kev sib cuag zoo tsim kom tuav tau zoo dua.
Hauv machining tiag tiag, kev ua tau zoo nyob ntawm ntau dua li cov hlau nplaum lub zog xwb. Cov khoom siv ua haujlwm, tuab, thiab qhov chaw sib cuag tag nrho cuam tshuam rau lub chuck ua haujlwm zoo li cas. Ib qho tuab steel feem ntau tuav tau zoo dua li nyias nyias. Ib qho chaw tiaj tus kuj muab kev sib cuag zoo dua li qhov tsis sib xws.
Yam tseem ceeb uas yuav tsum tau xav txog thaum xaiv ib qho sib nqus Chuck
Xaiv ib lub magnetic chuck yog hais txog kev sib piv cov cuab yeej rau koj cov kev ua haujlwm tiag tiag. Tsis yog xaiv qhov kev xaiv muaj zog tshaj plaws.
Khoom siv ua haujlwm
Sib nqus chucks tsuas yog ua haujlwm nrog cov ntaub ntawv ferrous. Hlau thiab cam khwb cia hlau teb zoo, tab sis lub zog tuav tseem tuaj yeem sib txawv ntawm lawv. Qee cov alloys tuav zoo dua lwm tus. Yog tias cov khoom muaj cov lus teb tsis tshua muaj hlau nplaum, koj yuav xav tau lub chuck muaj zog dua los yog kev teeb tsa sib txawv.
Workpiece Loj thiab Thickness
Loj thiab thickness ncaj qha cuam tshuam kev tuav tuav. Cov khoom tuab feem ntau tuav ruaj ntseg dua vim tias cov hlau nplaum tuaj yeem hla tau yooj yim dua. Cov khoom nyias nyias yog qhov nyuaj dua.
Yuav tsum tau tuav lub zog
Tuav quab yuam yuav tsum phim koj cov txheej txheem machining. Kev sib tsoo xav tau kev ruaj khov tab sis muaj zog nruab nrab. Milling feem ntau xav tau ntau dua, tshwj xeeb tshaj yog nrog kev txiav ntau dua.
Lub zog me dhau tuaj yeem ua rau txav mus los.
Kev quab yuam ntau dhau tuaj yeem ua rau kev tshem tawm nyuaj.
Koj xav tau qhov sib npaug uas haum rau koj txoj haujlwm.
Tshuab Hom
Cov tshuab sib txawv tso qhov xav tau sib txawv ntawm lub chuck. Ib lub ntsej muag grinder tsom rau ntawm flatness thiab txawm tuav. Lub tshuab milling suav nrog txiav quab yuam los ntawm ntau cov lus qhia. EDM xav tau qhov chaw ruaj khov yam tsis muaj kev cuam tshuam.
Xaiv ib lub chuck uas haum koj lub tshuab ua haujlwm li cas, tsis yog qhov nws tuav xwb.
Precision Requirements
Yog tias koj txoj haujlwm yuav tsum tau ua kom nruj, lub chuck yuav tsum muab cov khoom sib nqus sib nqus. Kev tuav tsis sib xws tuaj yeem ua rau me ntsis deformation, tshwj xeeb tshaj yog ntawm cov khoom nyias. Qhov no tuaj yeem cuam tshuam qhov flatness thiab qhov tseeb kawg.
Kev xav txog kev nyab xeeb
Kev nyab xeeb yuav tsum tsis txhob saib xyuas. Piv txwv li, electromagnetic chucks cia siab rau lub zog. Yog tias lub zog poob, lub zog tuav tuaj yeem poob. Lwm hom yuav ruaj khov dua nyob rau hauv rooj plaub no.
Kuj xav txog:
ruaj ntseg positioning ua ntej machining.
kev sib cuag nto.
kev nyab xeeb tso tawm tom qab ua haujlwm.
Sib nqus Chuck vs Mechanical Clamping
Xaiv qhov sib nqus chuck thiab mechanical clamping nyob ntawm seb koj ua haujlwm li cas, tsis yog qhov koj tuav xwb. Txhua txoj kev muaj nws tus kheej lub zog thiab kev txwv.
|
Qhov xwm txheej |
Sib nqus Chuck |
Mechanical Clamping |
|
Teem sijhawm |
Ceev ceev, kev hloov me me |
Kev qeeb qeeb, yuav tsum tau muab tso rau thiab nruj |
|
Workpiece Access |
Kev nkag mus rau saum npoo ntau dua, muaj kev cuam tshuam tsawg dua |
Txwv los ntawm clamps thiab fixtures |
|
Txoj kev tuav |
Txawm tias muaj zog sib nqus ntawm qhov chaw |
Point-raws li siab los ntawm clamps |
|
Haum rau nyias qhov chaw |
Kev txhawb nqa zoo dua, tsawg dua deformation (yog tias ua tau zoo) |
Risk ntawm dabtsi yog khoov los yog distortion |
|
Yooj yim |
Yooj yim rau reposition thiab rov teeb tsa |
Kev hloov pauv tsawg dua, yuav tsum tau hloov kho dua - |
|
tuav lub zog |
Nyob ntawm cov khoom thiab thickness |
tuaj yeem muab lub zog clamping siab heev |
|
Kev tiv thaiv nto |
Tsawg cim lossis puas |
Tej zaum yuav tawm cov qhab nia lossis cov ntsiab lus siab |
|
Kev nyab xeeb |
ruaj khov, tab sis nyob ntawm hom (piv txwv li, lub zog rau electromagnetic) |
Muaj kev nyab xeeb heev yog tias nruj nruj |
Hauv cov ntsiab lus yooj yim, cov hlau nplaum sib nqus ua rau koj nrawm thiab nkag tau zoo dua, tshwj xeeb tshaj yog rau qhov chaw tiaj tus. Mechanical clamping muab lub zog ntau dua thiab ua haujlwm ntawm cov khoom siv ntau dua.
Sib nqus Chuck rau cov tshuab sib txawv
Txoj cai sib nqus chuck nyob ntawm ntau lub tshuab koj siv. Lub chuck uas ua haujlwm zoo ntawm ib lub tshuab yuav tsis haum rau lwm tus.
Nto grinders
Rau kev sib tsoo saum npoo, txawm tias tuav yog qhov tseem ceeb heev. Koj xav kom lub workpiece nyob tiaj tus thiab ruaj khov thoob plaws tag nrho saum npoo. Cov hlau nplaum tas mus li feem ntau siv ntawm no vim lawv yooj yim, txhim khu kev qha, thiab zoo - haum rau kev sib tsoo tiaj tus.

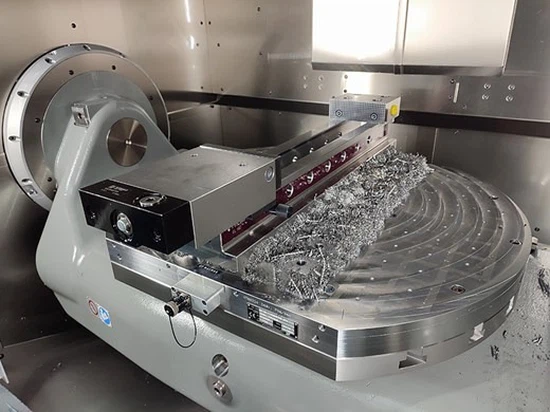

Milling Tshuab
Milling tso ntau txiav quab yuam ntawm ib feem, feem ntau los ntawm cov lus qhia sib txawv. Vim li ntawd, koj xav tau lub zog tuav kom muaj zog thiab ruaj khov zoo dua. Electromagnetic los yog electro- cov hlau nplaum tsis tu ncua feem ntau yog cov kev xaiv zoo dua rau kev milling, tshwj xeeb tshaj yog thaum lub workpiece loj los yog cov txiav hnyav dua.
EDM tshuab
Nyob rau hauv EDM, lub hom phiaj yog qhov chaw ruaj khov yam tsis tau ntxiv ntau lub zog rau lub workpiece. Lub chuck sib nqus tuaj yeem pab tuav qhov ruaj ntseg thaum ua kom lub teeb huv si thiab yooj yim. Qhov no muaj txiaj ntsig zoo thaum koj xav tau qhov tseeb thiab nkag tau yooj yim.
General CNC Machining
Rau CNC ua hauj lwm, koj xaiv nyob ntawm cov khoom, txiav load, thiab teeb style. Yog tias koj hloov qhov feem ntau, lub tshuab nqus hlau tuaj yeem pab txo lub sijhawm teeb tsa thiab txhim kho rov ua dua.
Common Applications Magnetic Chucks
Sib nqus chucks yog siv nyob rau hauv ntau txoj haujlwm machining qhov chaw ruaj khov thiab teeb meem ceev. Lawv muaj txiaj ntsig tshwj xeeb tshaj yog thaum koj xav tau kev nkag mus rau lub workpiece zoo dua thiab muaj kev cuam tshuam tsawg dua los ntawm cov clamps.
Nto sib tsoo
Qhov no yog ib qho ntawm feem ntau siv. Magnetic chuck pab koj tuav cov ferrous tiaj tus sib npaug ntawm qhov chaw. Qhov ntawd ua rau kev sib tsoo ruaj khov thiab tuaj yeem txhim kho flatness thiab ua tiav. Nws tseem txuag lub sijhawm teeb tsa.
Milling ntawm Flat Parts
Hauv qee txoj haujlwm milling, cov hlau nplaum yog siv los tuav cov phaj, thaiv, lossis qhov yooj yim yam tsis muaj sab clamps. Qhov no muab rau koj zoo dua rau kev txiav. Nws tseem tuaj yeem pab tau thaum koj xav tau tshuab ntau lub ntsej muag nrog tsawg dua kev hloov pauv.
EDM ua haujlwm
Sib nqus chucks kuj tseem siv hauv EDM daim ntawv thov. Lawv ua kom lub workpiece ruaj khov thaum tso cai rau kev teeb tsa huv si thiab qhib. Qhov no yog qhov muaj txiaj ntsig thaum koj xav tau qhov tseeb qhov tsis muaj ntxiv clamping siab.
Toolroom thiab Pwm Ua Haujlwm
Yog tias koj ua haujlwm nrog cov cuab yeej, tuag, lossis cov pwm pwm, cov hlau nplaum chuck tuaj yeem pab nrog rov ua dua thiab tuav tau yooj yim dua. Qhov no yog qhov tshwj xeeb tshaj yog siv tau rau cov khoom me me lossis kev ua haujlwm siab.
Nyias los yog mos workpieces
Sib nqus chucks feem ntau xaiv rau nyias qhov chaw uas yuav khoov raws li cov neeg kho tshuab clamping. Vim tias lub zog tuav tau kis thoob plaws qhov chaw, qhov kev pheej hmoo ntawm cov cim siab hauv zos tuaj yeem qis dua thaum qhov kev teeb tsa raug muab tso ua ke.
Yuav Ua Li Cas Ntsuas Magnetic Chuck Ua Ntej Siv
Ua ntej koj pib machining, nws tsim nyog xyuas seb qhov sib nqus chuck ua haujlwm li cas hauv koj qhov teeb tsa tiag tiag. Kev sim ceev tuaj yeem tiv thaiv teeb meem tom qab.
Tshawb xyuas Lub Zog
Muab ib qho kev sim workpiece rau ntawm chuck thiab tig nws. Sim siv lub teeb quab yuam los ntawm tes kom pom tias nws hloov. Yog tias qhov txav tau yooj yim heev, lub zog tuav yuav tsis txaus rau koj txoj haujlwm.
Koj tuaj yeem sib piv cov haujlwm sib txawv ntawm chuck nto.
Tshawb xyuas qhov chaw tiv tauj
Kev sib cuag zoo yog qhov tseem ceeb. Xyuas kom ob lub chuck nto thiab lub workpiece yog huv si thiab tiaj tus. Cov av, roj, lossis qhov khoob me me tuaj yeem txo tuav lub zog. Txawm tias ib cheeb tsam me me tuaj yeem cuam tshuam kev ua haujlwm.
Test Flatness thiab Stability
Khiav ib qho yooj yim xeem txiav los yog sib tsoo hla. Saib xyuas kev vibration lossis txav thaum lub sijhawm machining. Yog tias qhov tsis ruaj khov, lub chuck yuav tsis haum rau qhov kev teeb tsa ntawd. Cov kauj ruam no qhia txog kev ua haujlwm tiag tiag.
Xyuas Switching Performance
Tig lub chuck rau thiab tawm ntau zaus. Kev hloov pauv yuav tsum zoo ib yam thiab du. Yog tias lub tshuab ua haujlwm nyuaj lossis tsis ruaj khov, nws yuav cuam tshuam rau kev siv txhua hnub.
Simulate Cov xwm txheej tiag
Yog tias koj qhov chaw ua haujlwm muaj cua sov, coolant, lossis kev co, sim chuck nyob rau hauv cov xwm txheej ntawd. Kev teeb tsa uas ua haujlwm hauv ib puag ncig huv yuav coj txawv txawv hauv kev tsim khoom tiag tiag.
Qhov ze koj qhov kev xeem sib tw siv tiag tiag, qhov kev ntseeg siab dua koj cov txiaj ntsig yuav yog.
FAQs
Q: Puas tuaj yeem sib nqus chuck tuav nyias workpieces yam xyuam xim?
A: Yog, tab sis nws nyob ntawm thickness thiab kev sib cuag. Cov khoom nyias nyias yuav tsis tuav zoo li cov tuab. Tej zaum koj yuav xav tau kev nplua - ncej chuck lossis kev txhawb nqa ntxiv los txhim kho kev ruaj ntseg.
Q: Yuav ua li cas yog hais tias lub hwj chim tsis ua hauj lwm ntawm ib tug electromagnetic chuck?
A: Yog tias lub zog poob, lub zog sib nqus tuaj yeem poob. Qhov no yuav ua rau lub workpiece txav mus. Tias yog vim li cas cov tshuab thaub qab lossis electro- cov chucks mus tas li feem ntau siv rau hauv cov ntawv thov tseem ceeb.
Q: Cov hlau nplaum puas tuaj yeem siv rau txhua yam ntaub ntawv?
A: Tsis yog. Sib nqus chucks tsuas yog ua haujlwm nrog cov ntaub ntawv ferrous xws li hlau lossis hlau. Tsis yog- cov khoom sib nqus xws li txhuas lossis yas yuav tsis tuav.
Q: Koj puas yuav tsum xav txog cov ntawv thov yav tom ntej thaum xaiv chuck?
A: Yog tias koj cov khoom hloov pauv ntau zaus, nws yog ib lub tswv yim zoo. Ib qho kev hloov pauv me ntsis tuaj yeem pab koj kom tsis txhob hloov cov khoom siv tom qab. Tab sis rau kev tsim khoom ruaj khov, kev xaiv xaiv ntau dua yog qhov zoo dua.
Q: Dab tsi yog qhov yuam kev loj tshaj plaws thaum xaiv cov hlau nplaum chuck?
A: Kev tsom mus rau lub zog tuav nkaus xwb. Hauv kev siv tiag tiag, yam xws li kev sib cuag saum npoo, workpiece thickness, thiab tshuab hom feem ntau tseem ceeb npaum li cas.
Q: Thaum twg koj yuav tsum xaiv ib qho kev cai sib nqus chuck tsis yog tus qauv?
A: Kev cai sib nqus chuck yog tsim nyog xav txog thaum cov qauv qauv tsis phim koj lub tshuab, koj lub workpiece zoo li txawv txav, lossis koj cov txheej txheem muaj cov cai tshwj xeeb rau tuav quab yuam, flatness, los yog kev nyab xeeb.
Q: Cov hlau nplaum puas tuaj yeem hloov kho rau cov tshuab tshwj xeeb?
A: Yog. Sib nqus chucks tuaj yeem hloov kho kom haum rau qhov sib txawv ntawm lub tshuab qhov ntau thiab tsawg, rooj layouts, thiab kev ua haujlwm. Yog tias koj lub tshuab muaj qhov tshwj xeeb mounting qhov ntev lossis qhov chaw txwv, kev cai daws yuav haum zoo dua li tus qauv qauv.
Xaus
Xaiv txoj cai sib nqus chuck los ntawm qhov nws haum rau koj qhov kev teeb tsa machining tiag tiag. Cov khoom ntawm koj lub workpiece, nws thickness, hom tshuab koj siv, thiab txiav tej yam kev mob cuam tshuam li cas lub chuck yuav ua. Yog tias ib qho ntawm cov no tsis sib haum zoo, koj tuaj yeem khiav mus rau cov teeb meem xws li tuav tsis muaj zog lossis tsis ruaj khov machining. Kev teeb tsa zoo yuav tsum muaj kev ruaj khov thiab ua tau zoo, tsis yog ib yam uas koj yuav tsum tau kho dua. Tsis txhob tsom mus rau ib qho tseem ceeb, nws pab saib tag nrho cov txheej txheem thiab txhua yam ua haujlwm ua ke li cas.
NtawmGreat Magtech, koj tuaj yeem tshawb nrhiav cov kev xaiv sib nqus chuck rau cov tshuab sib txawv thiab kev siv. Yog tias koj qhov teeb tsa muaj cov kev cai tshwj xeeb, cov kev cai daws teeb meem muaj kom zoo dua rau koj qhov kev ua haujlwm.
